Front view — twin disc-openers and hoppers
2CML Planter
Two-row trailed potato planter with 1.3 m³ seed tank, 120 HP class
- Two-row trailed planter
- 1.3 m³ seed tank
- 0.35 m³ fertilizer tank
- ≥ 120 HP tractor class
Overview
The 2CML-2 is HONGYOU's large-capacity two-row potato planter built for high-acreage operations. A 1.3 m³ seed tank, 0.35 m³ liquid/granular fertilizer tank and 1600 mm working width let one 120 HP tractor open the furrow, place seed tubers, side-band fertilizer and form a 150–200 mm ridge in a single pass at 0.27–0.33 ha/h. Specification values are theoretical — please refer to actual measurement on delivery.
Key features

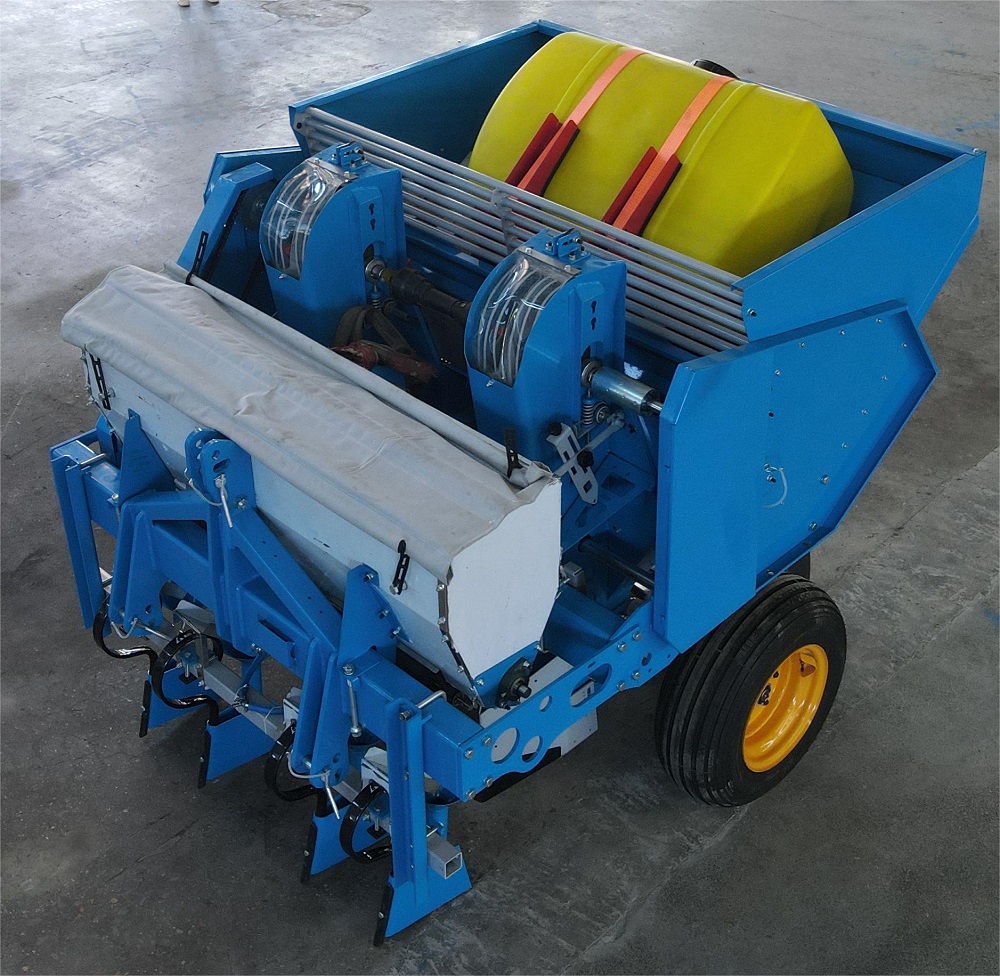

High-capacity seed tank
1.3 m³ tank minimises refill stops on long passes and large fields.

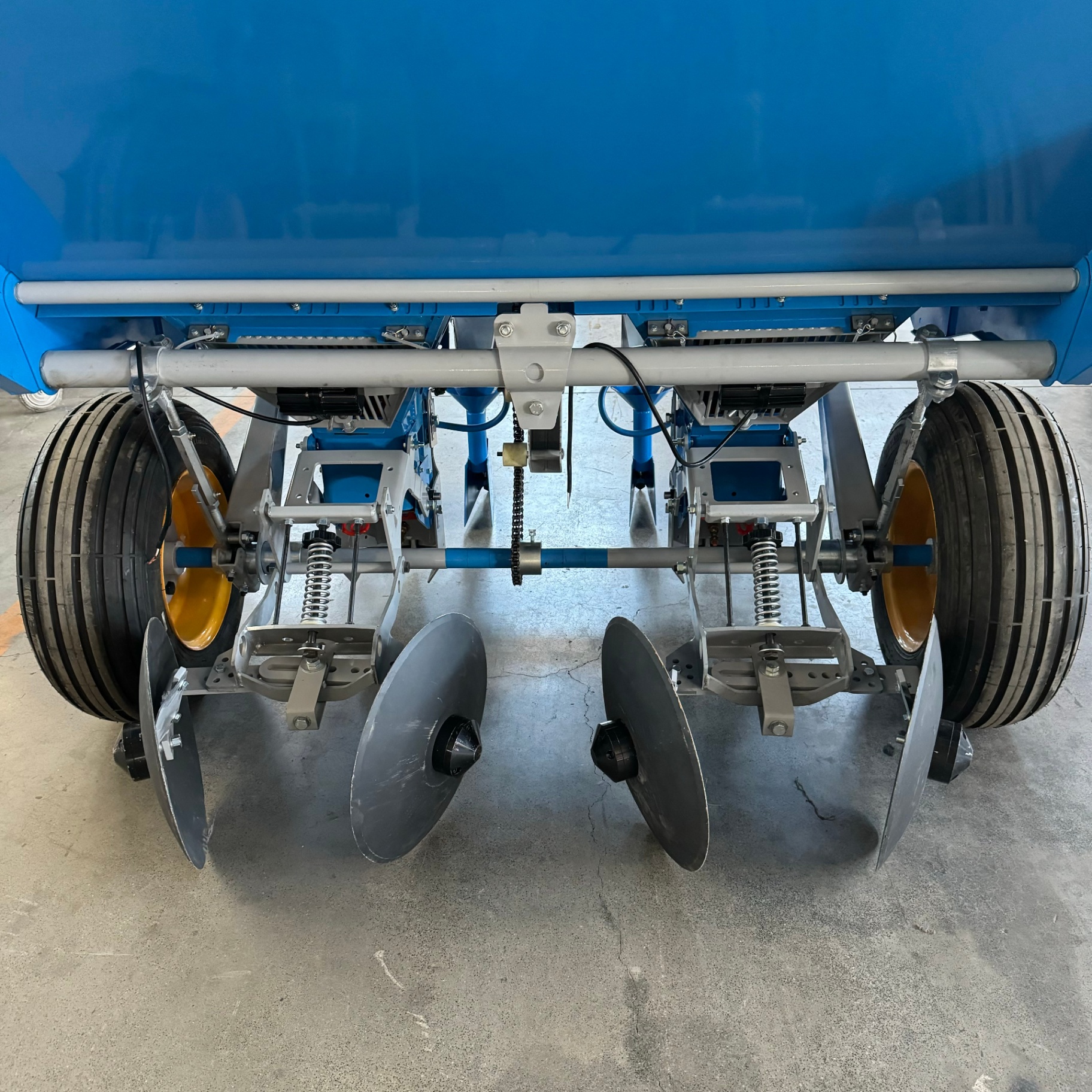

Twin disc openers
Concave disc openers create a clean furrow and cope with crop residue.
Liquid + granular fertilizer
0.35 m³ tank supports liquid or granular fertilizer side-banded next to the seed.

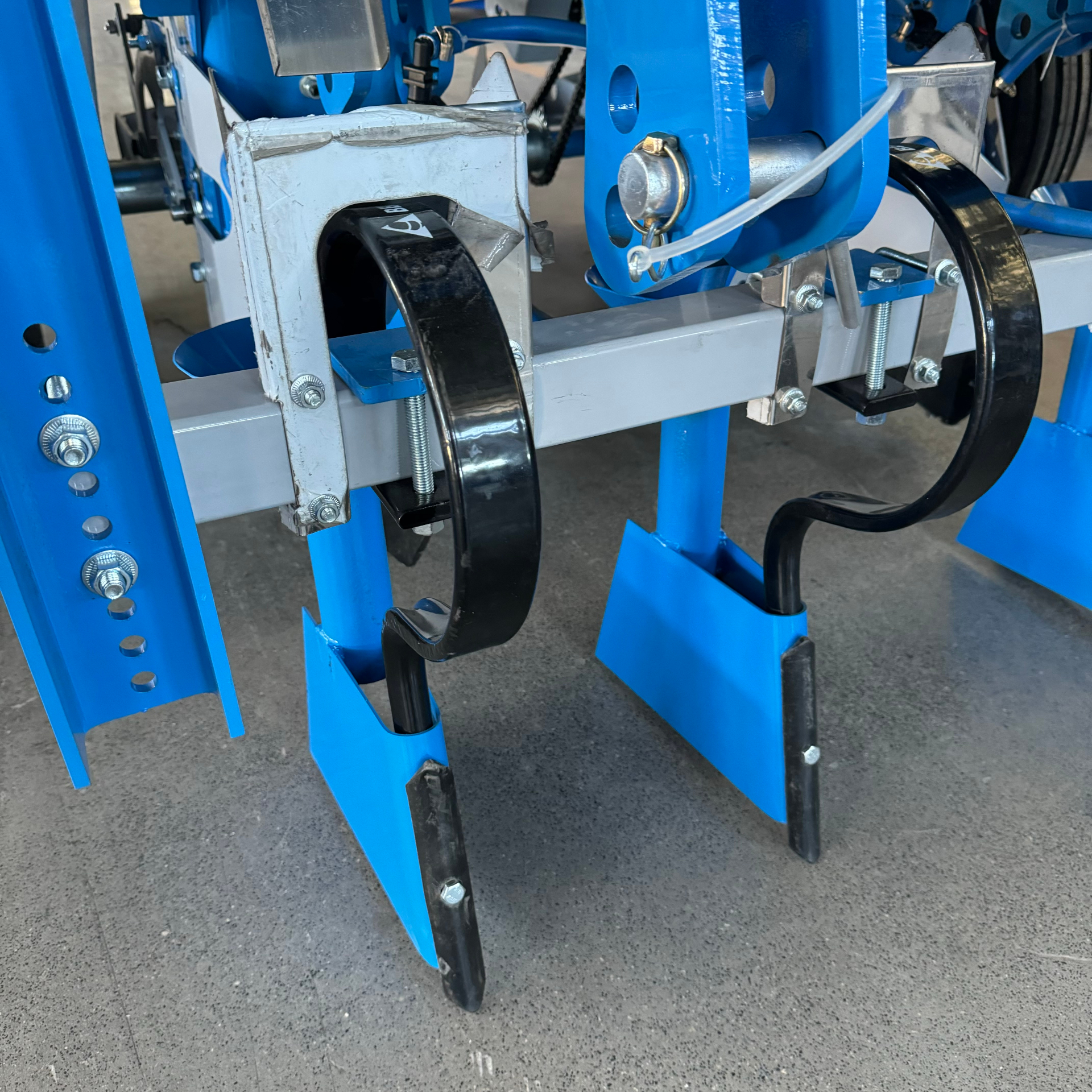

Adjustable ridge geometry
Ridge width 200–260 mm, bed width 300–350 mm and height 150–200 mm — tuned per agronomic region.
Heavy-duty wheel chassis
10–15 tires on 1805 mm centres carry the loaded 1020 kg machine across soft seedbeds.
540 r/min PTO drive
Standard PTO speed with shear-bolt protection on the main drive chain.
Typical applications
Available models in this series
Same proven design, scaled to your tractor and field size. Pick the model that matches your power and row width — full specs available on request.
| Model | Working width | Matched power | Weight | Notes |
|---|---|---|---|---|
| 2CML Planter | 1600 mm | ≥ 120 HP | 1020 kg | Two-row trailed potato planter with 1.3 m³ seed tank, 120 HP class |
| 2CML-4XS Potato Planter | 3600 mm | ≥ 180 HP (132 kW) | 2760 kg | Four-row high-capacity potato planter for 180 HP tractors |
