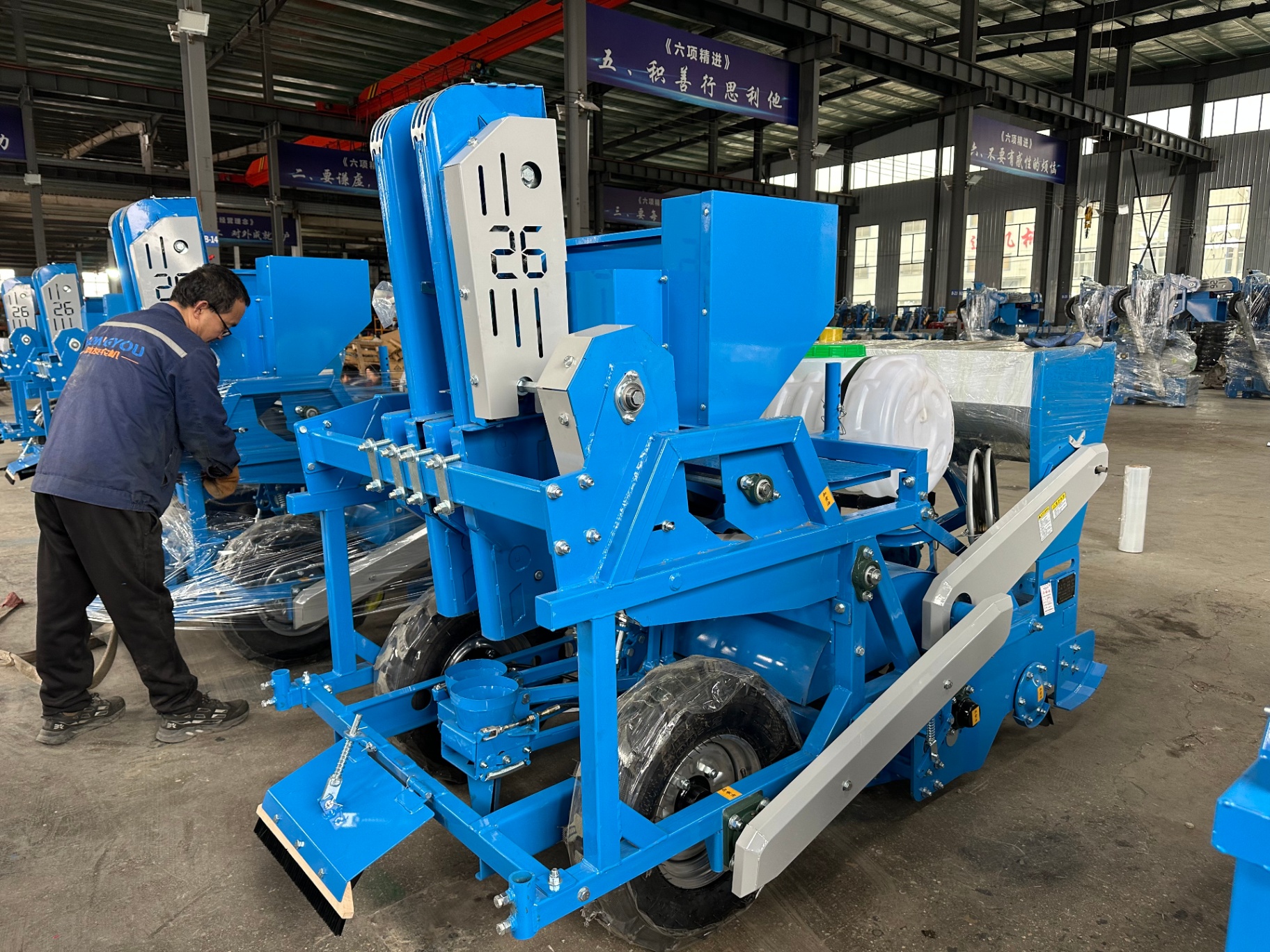

Factory view — complete machine with rotary tiller and seed box
2ZMX-2 Seedling Transplanter
Three-point suspension single/double-row seedling transplanter
- Three-point suspension
- Single & double row planting
- 0.3 m³ seed box
- ≥ 70 HP tractor class
Overview
The 2ZMX-2 is a three-point suspension seedling transplanter supporting both single-row and double-row planting on raised beds. With a 0.3 m³ seed box, 0.15 m³ fertilizer box, 1100 mm working width and 100–150 mm insertion depth, it is matched to tractors of 70 HP or above at 540–720 r/min PTO and combines bed forming, planting and film support in one pass. Specification values are theoretical and should be confirmed against actual delivery configuration.
Key features

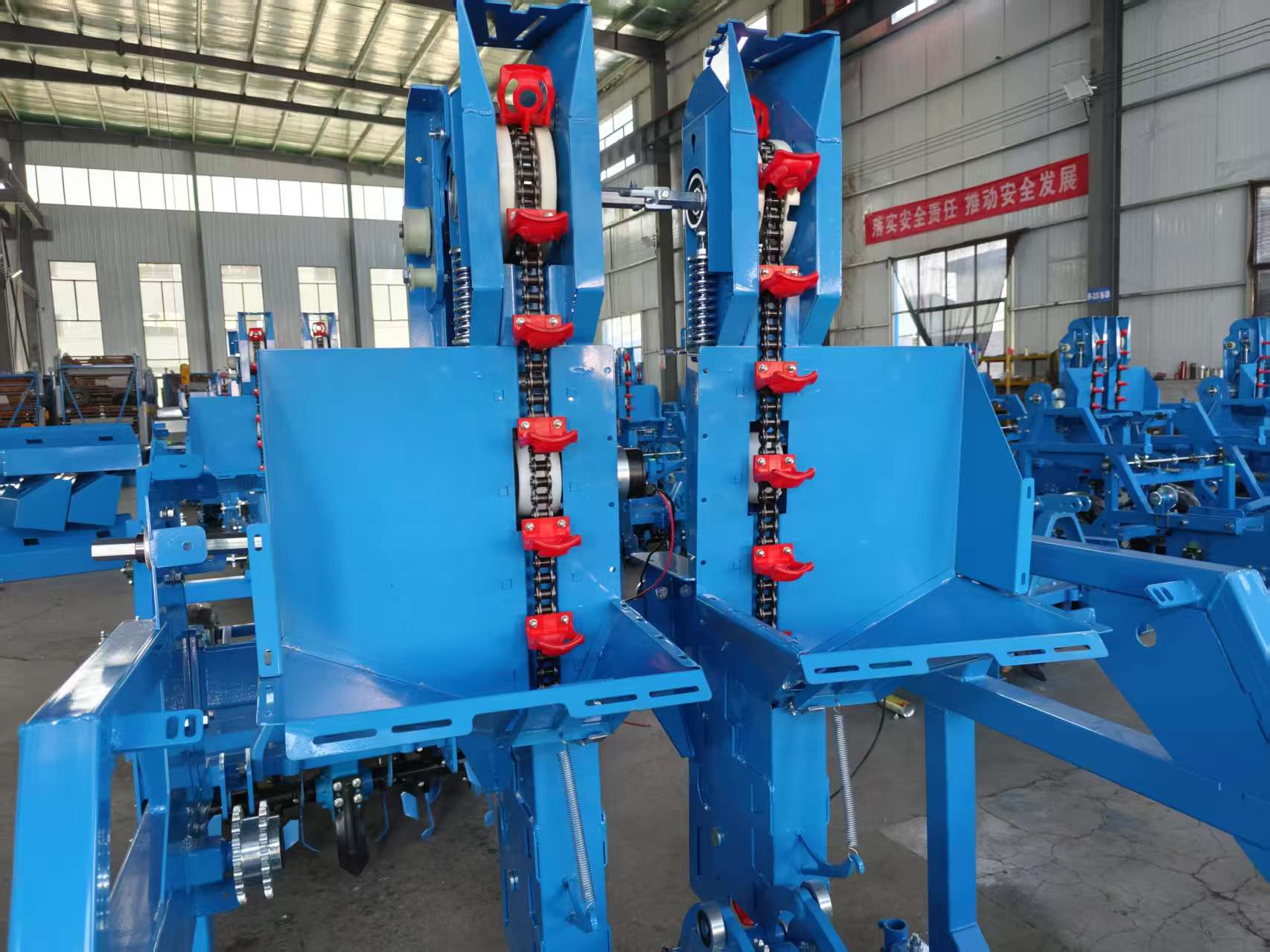

Twin chain-clip feeders
Two vertical chain-clip seedling chains deliver continuous, evenly spaced insertion for high-density planting.
Single & double row capable
Configurable single-row or double-row layout with 200 mm line spacing and 230/300 mm seeding spacing to match different agronomic plans.
Integrated bed forming
Rotary tiller and central-link depth limiter shape a 400 mm ridge / 800 mm bed at 220 mm ridging height in the same pass.
Combined seed & fertilizer
0.3 m³ seed box and 0.15 m³ fertilizer box allow seedling and fertilizer placement together to save passes.
Film-compatible operation
1 m supporting film width and adjustable 940 mm wheel track keep the machine aligned with mulched beds.
70 HP tractor matching
Three-point suspension hitch with 610 mm matching suspension width and 540–720 r/min PTO suits standard 70 HP+ tractors.
Typical applications
Potato Planter
Precision cup-feed seeding with fertilizer
