4UZY-100 complete machine — front-quarter workshop view
4UZY-100 Self-Propelled Potato Harvester
1000 mm wheeled self-propelled harvester with ton-bag collection and hydraulic stepless drive
- 1000 mm working width
- Self-propelled wheeled
- 100 HP Quanchai
- 0.13–0.2 ha/h
Overview

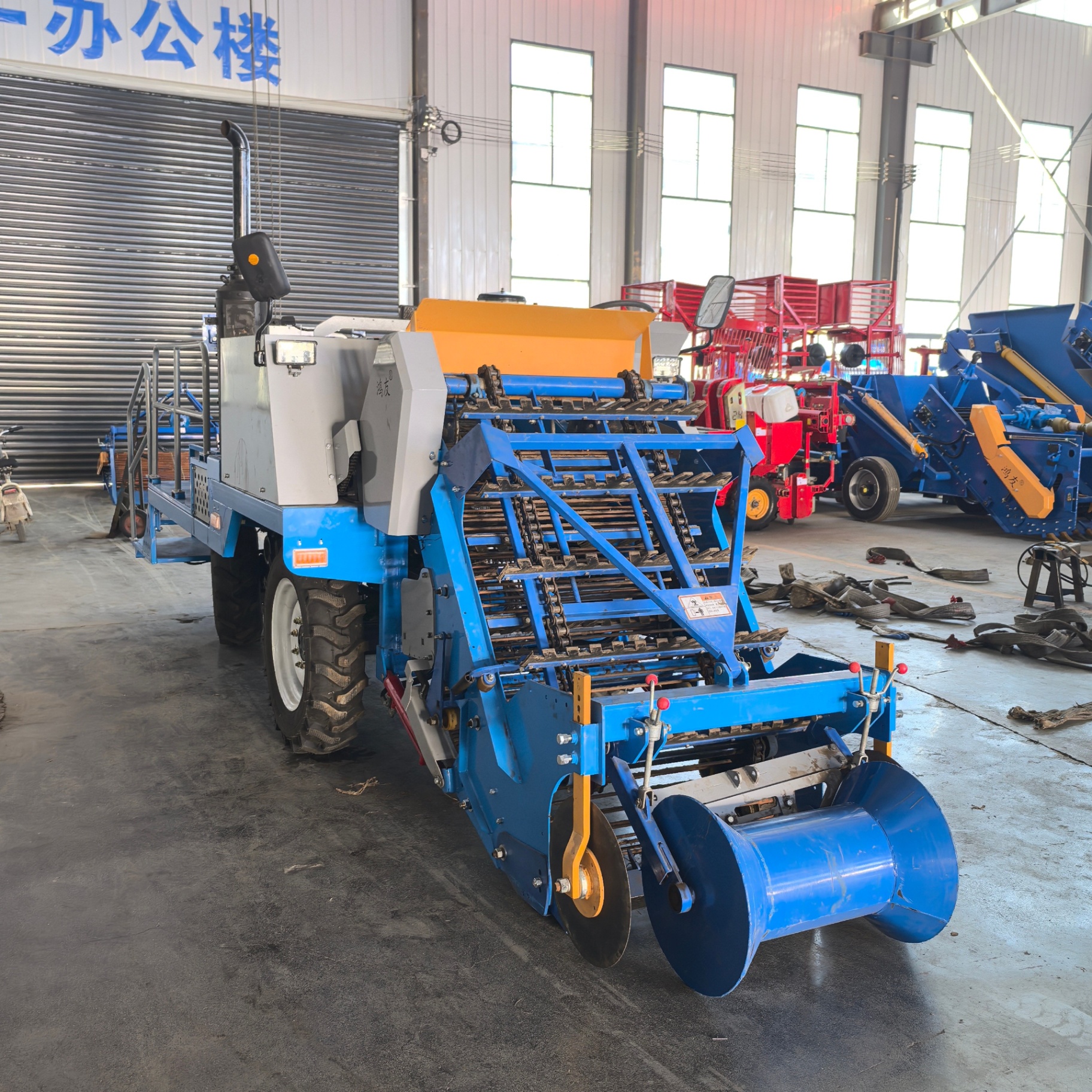

The 4UZY-100 is a wheeled self-propelled potato harvester powered by a 100 HP Quanchai National-IV diesel engine with hydraulic stepless drive. With a 1000 mm working width, scraper-knife digging head, multi-stage grid-chain conveyor and ton-bag collection with a lift back tilt discharge plate, it offers a compact and maneuverable single-row harvesting platform for medium-acreage growers.
Key features
Wheeled self-propelled platform

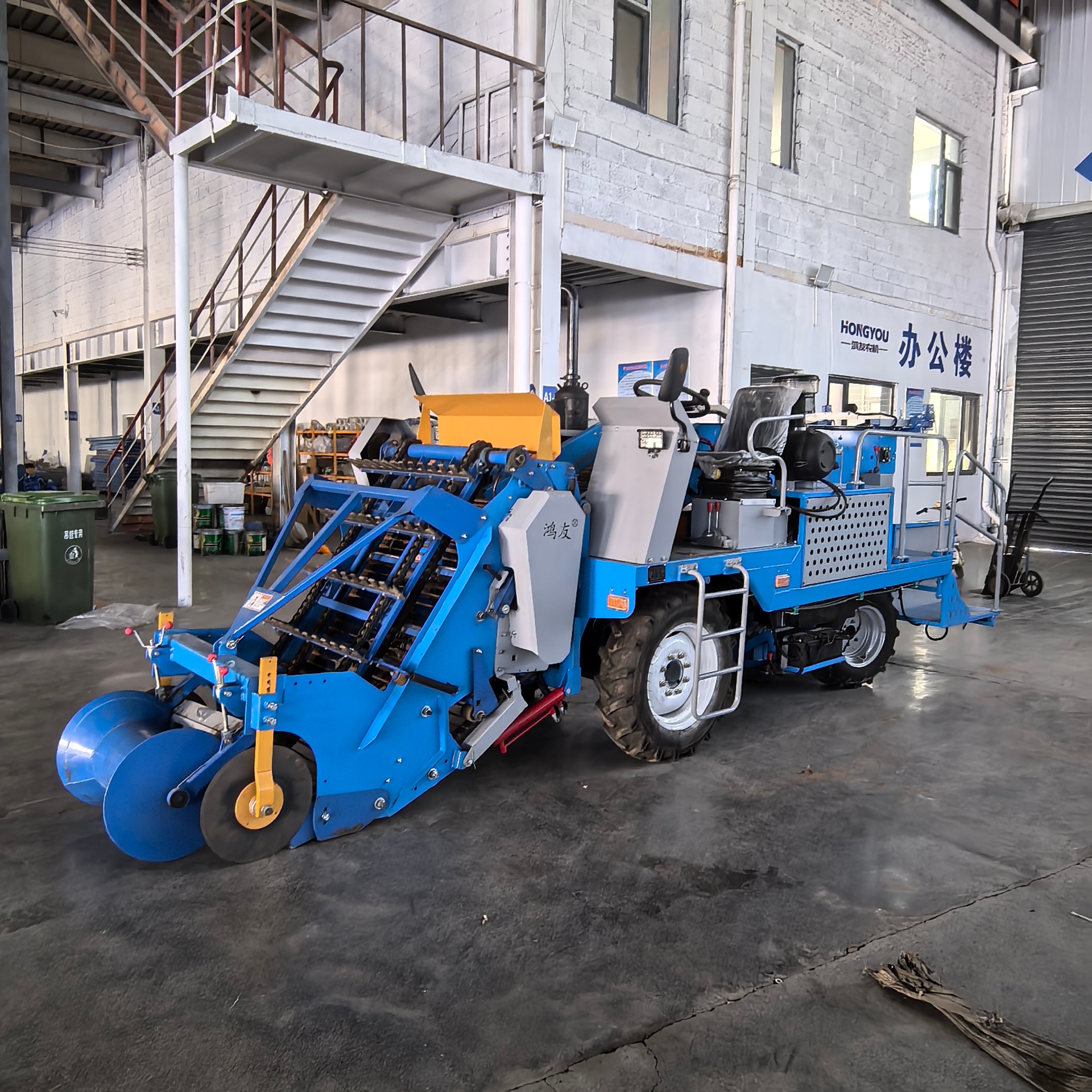

2 driving + 2 steering wheels with 2095 mm wheelbase and 230 mm ground clearance give a stable, highly maneuverable chassis suited to single-row potato fields.

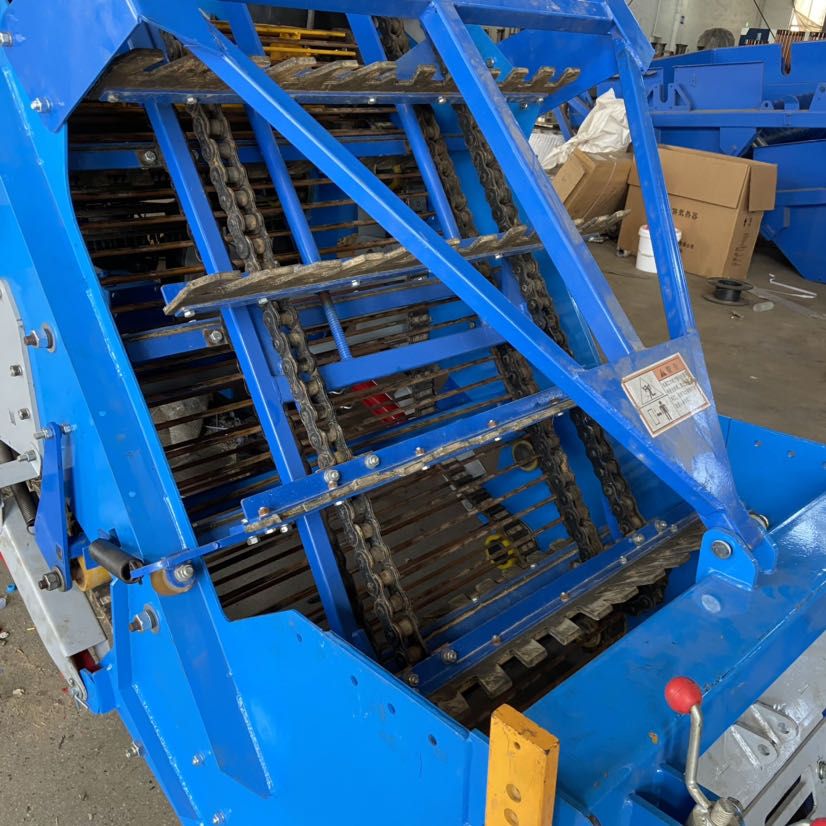

Multi-stage grid-chain conveying

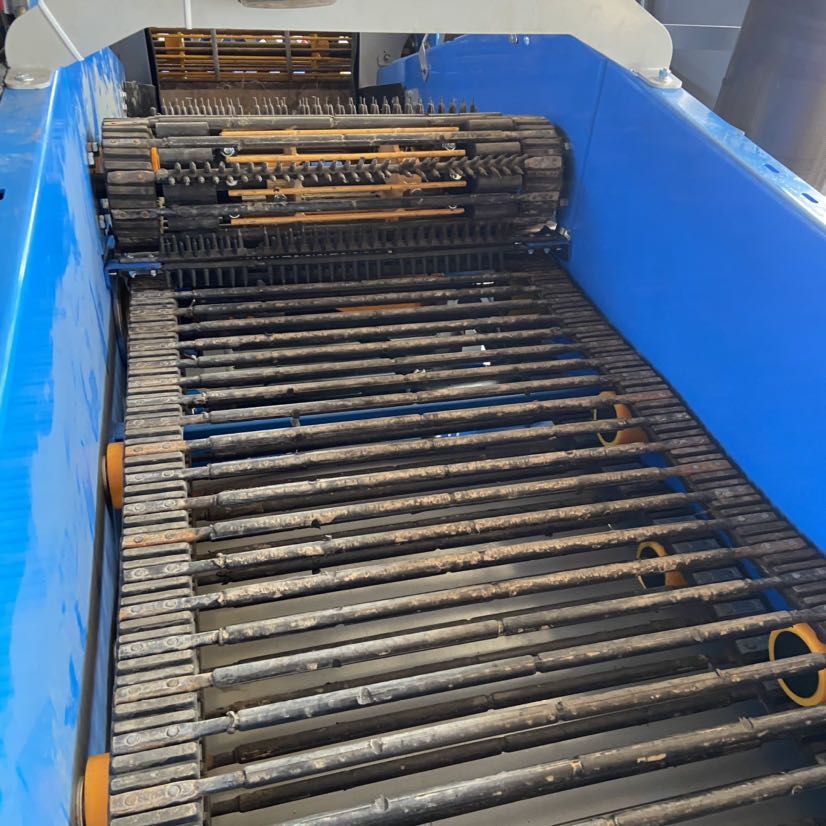

Three-stage conveyor with 50/45/45 mm chain clearances and 55CrSi chain bars separates soil and crop progressively before reaching the sorting platform.
Hydraulic stepless travel drive
Hydraulic stepless transmission with high/empty/low job gears provides smooth speed control between 5–20 km/h on road and field.

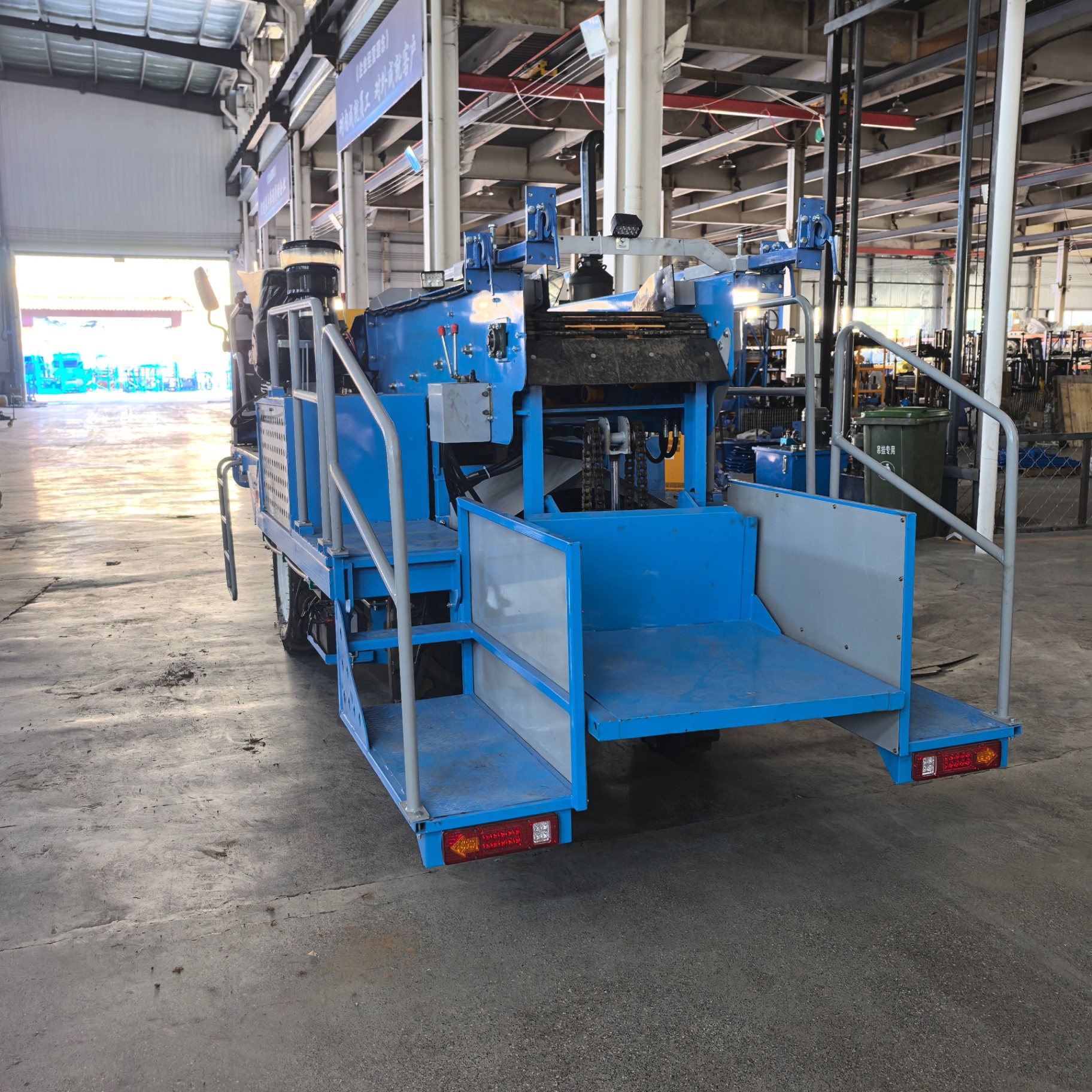

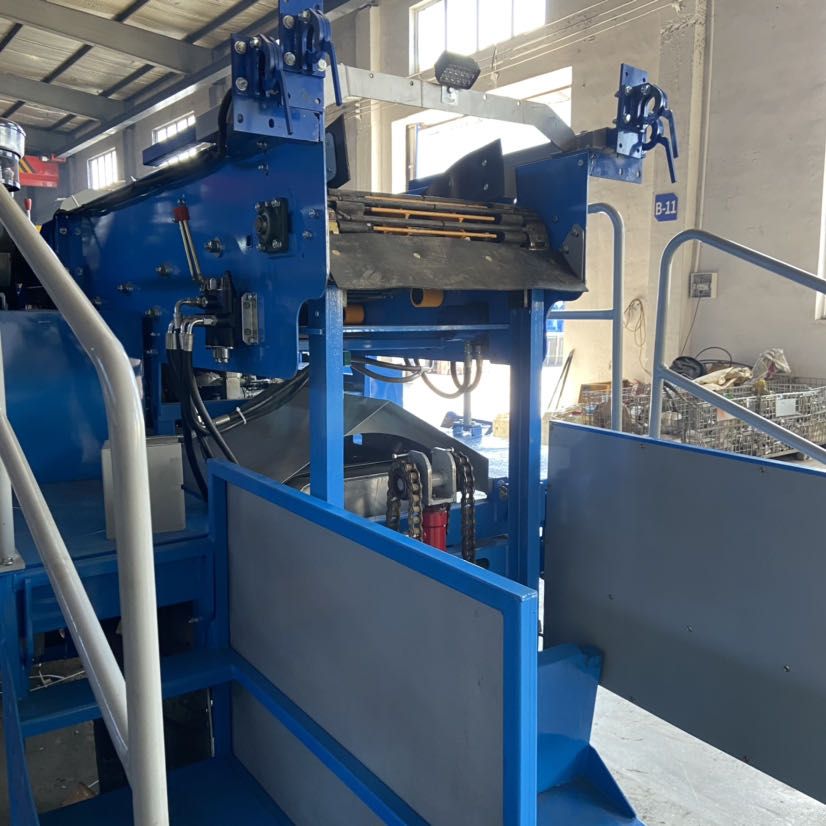

Ton-bag collection with lift discharge

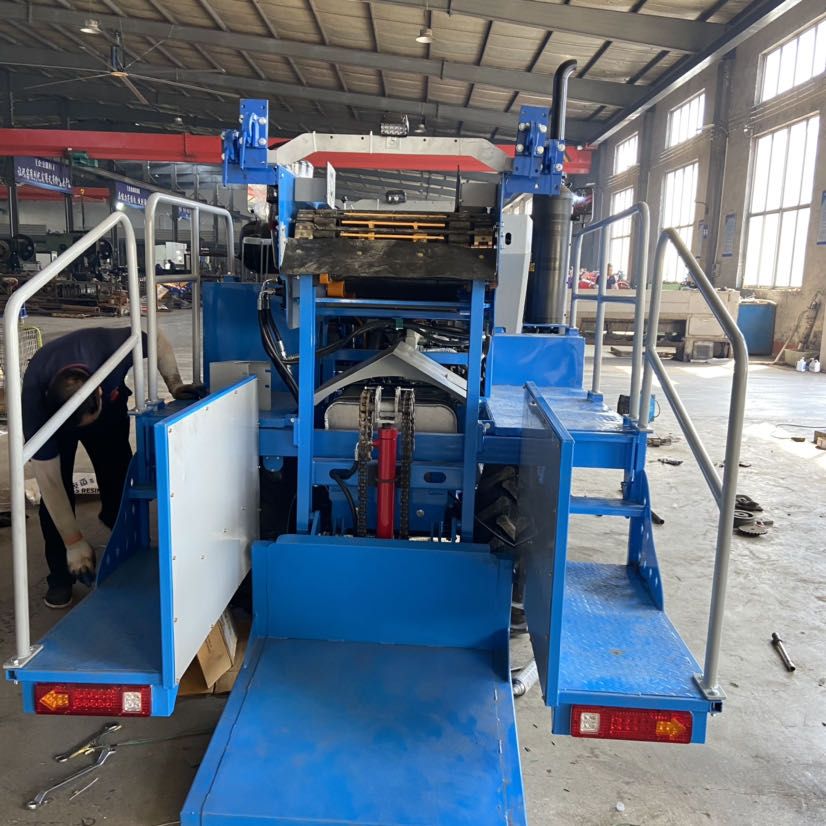

On-board ton-bag collection paired with a lift back tilt plate enables fast, low-damage transfer of harvested potatoes for transport.
