Studio view — operator side
2CM-2A Potato Planter
Two-row tractor-mounted potato planter with fertilizer hopper
- Double-ridge double-row
- ≥ 70 HP tractor
- 0.3 m³ seed box
- 0.15 m³ fertilizer box
Overview
The 2CM-2A is a tractor-mounted two-row potato planter on a three-point suspension. With a 0.3 m³ seed box, 0.15 m³ fertilizer box and 1130 mm working width, it opens the furrow, places the seed tuber, side-bands fertilizer and forms a 230 mm ridge in a single pass — paired with any tractor of 70 HP or above at 540 r/min PTO.
Key features
Two-row planting

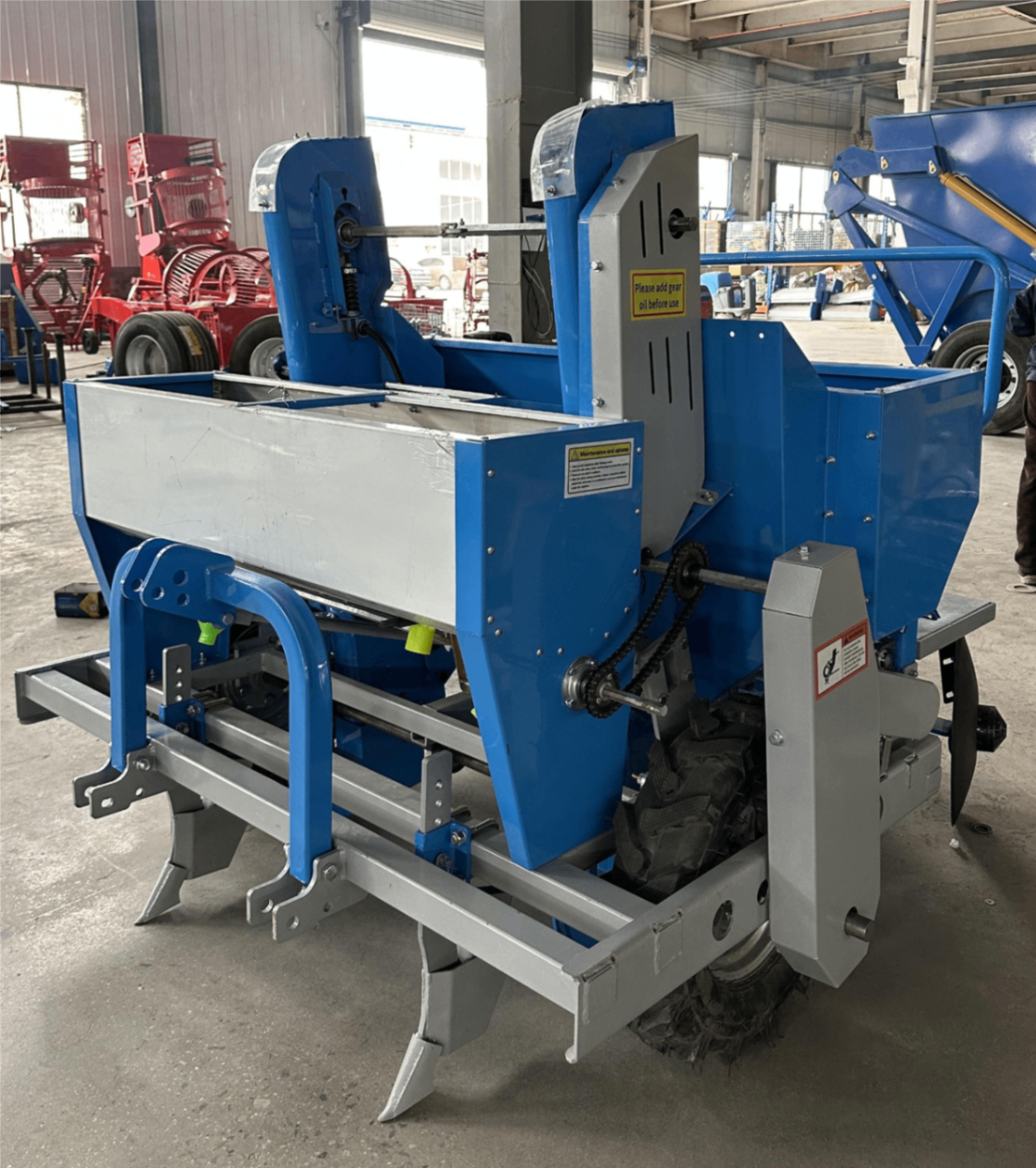

Two independent seed columns with chain-driven cup-feed metering for consistent spacing.
Integrated fertilizer hopper
Granular fertilizer side-banded next to the seed line for safe early-stage nutrition.

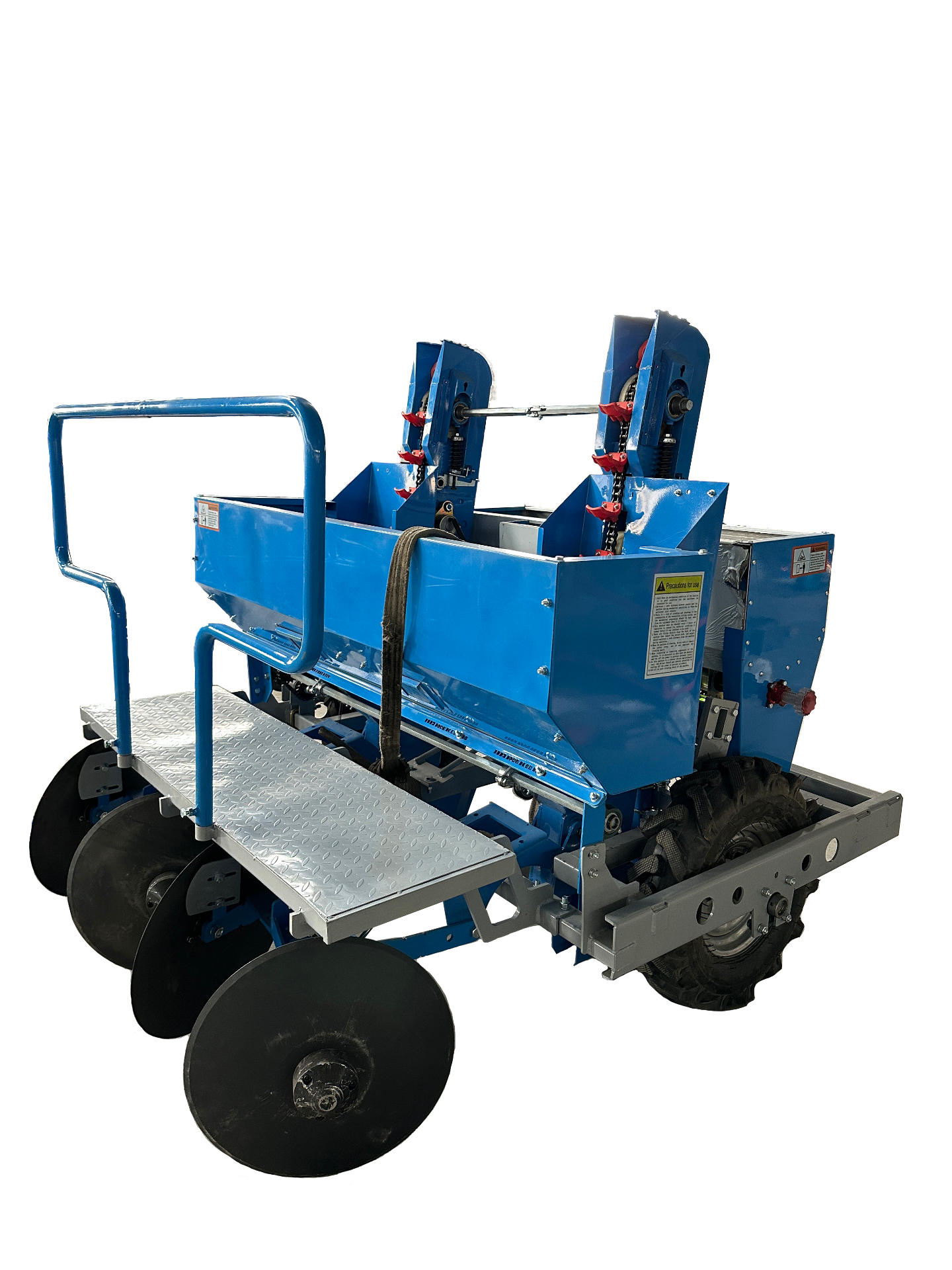

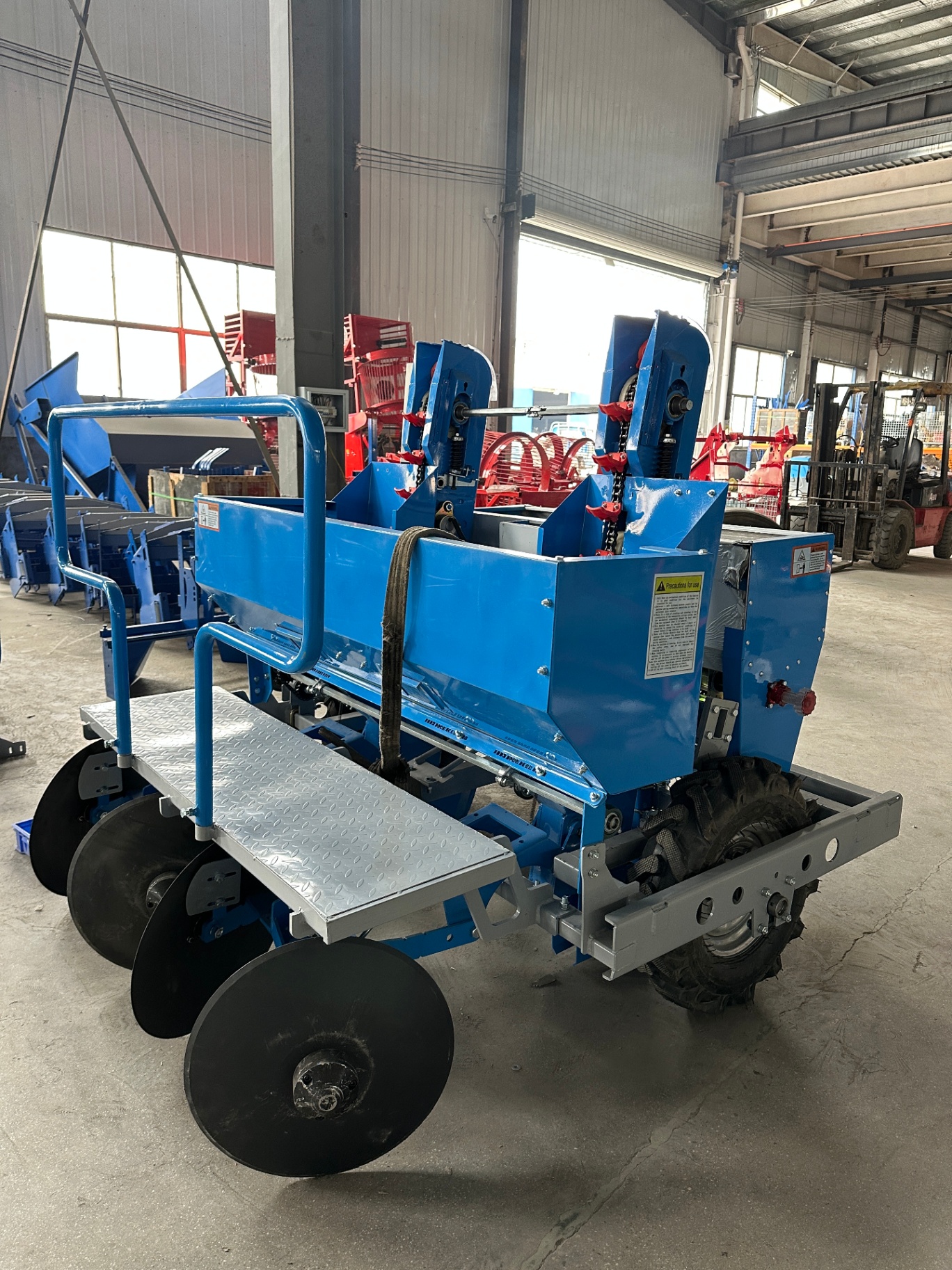

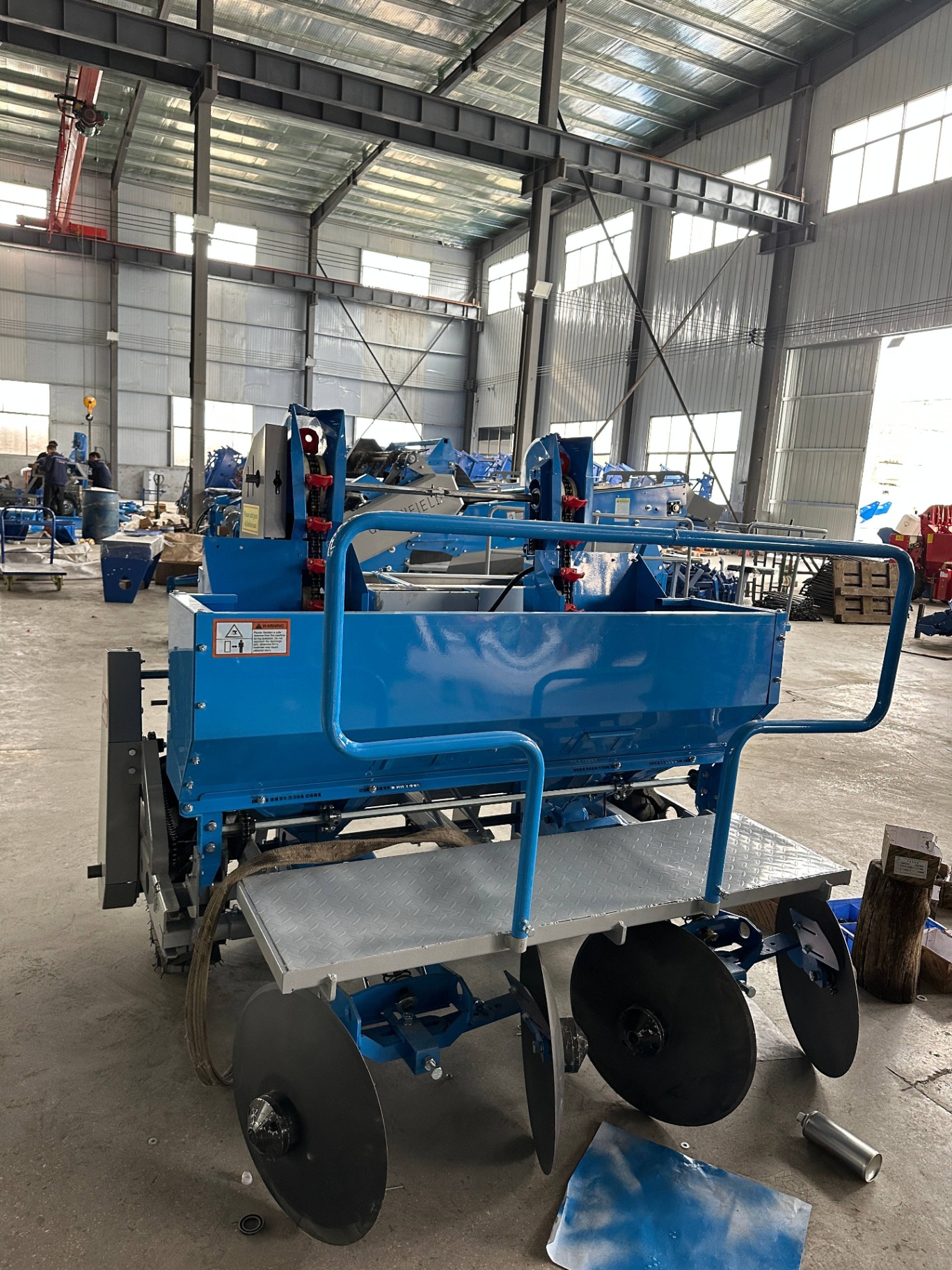

Rear disc hillers
Adjustable angled discs close the furrow and form a clean ridge over the seed.
Operator platform
Diamond-plate standing platform with handrail for in-field seed-hopper top-up.
