4UX harvester side view — complete frame and digging bed
4UX Harvester
Three-point 1300 mm potato digger with rod-chain conveying
- 1300 mm working width
- 3–5 mu/h
- 580 kg
- 70–100 HP
Overview
The 4UX-130 is a compact three-point potato harvester built for medium-width beds, combining a 1300 mm digging width with rod-chain conveying and gauge-wheel depth control. It targets growers needing simple tractor-mounted harvesting with reliable soil separation and a lighter 580 kg frame.
Key features
1300 mm digging width
Suitable for compact and medium potato fields where stable tractor matching and efficient one-pass lifting are required.
Rod-chain conveying

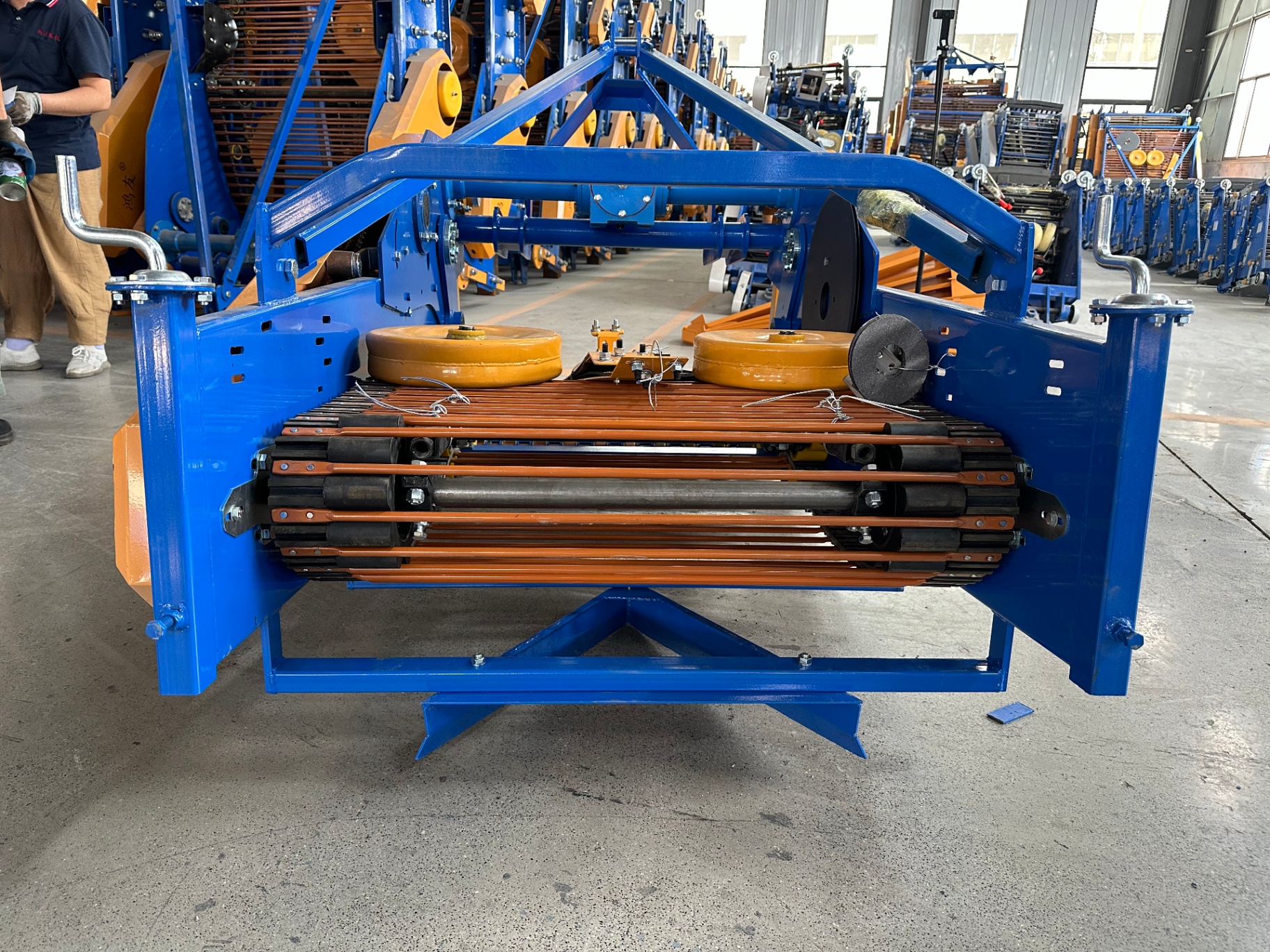

Bar-chain conveying bed shakes off soil while lifting tubers rearward for cleaner field output.
65Mn shovel + gauge wheel
Durable shovel material and adjustable gauge wheel help maintain stable 0–150 mm digging depth.
70–100 HP tractor match
Uses standard 540 r/min PTO input and 800 mm suspension width for broad compatibility.
Typical applications
Available models in this series
Same proven design, scaled to your tractor and field size. Pick the model that matches your power and row width — full specs available on request.
| Model | Working width | Matched power | Weight | Notes |
|---|---|---|---|---|
| 4UX Harvester | 1300 mm | 70–100 HP | 580 kg | Three-point 1300 mm potato digger with rod-chain conveying |
| 4UX-160 Potato Harvester | 1600 mm | 70–100 HP | 620 kg | Wider 1600 mm three-point potato harvester for higher throughput |
| 4UX Cutting-Disc Series | 830 / 900 / 1000 / 1100 mm | ≥40 HP to ≥50 HP | — | 4UX cutting-disc series from 830 mm to 1100 mm working widths |
