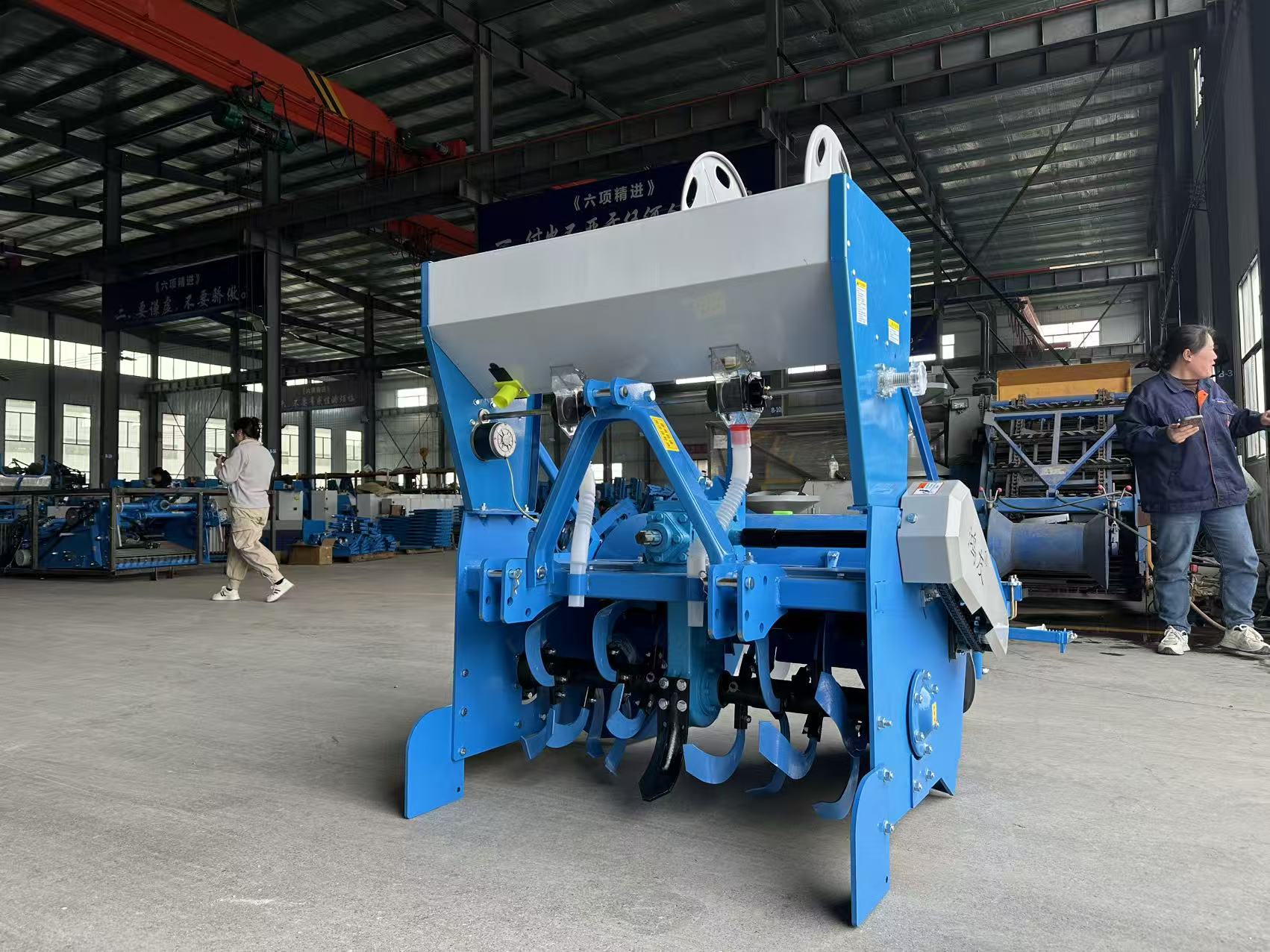

Factory view — rear of ridger showing hopper, drive disc and rotary blades
1GMA-110 Ridger
Three-point-mounted 1100 mm single-row ridge former with rotary tillage
- Three-point suspension
- 1100 mm working width
- 0.14 ha/h efficiency
- ≥ 50 HP four-wheel-drive
Overview
The 1GMA-110 is a three-point-mounted single-row ridger that combines rotary tillage, fertilizer placement and ridge shaping in one pass. Designed for ≥50 HP four-wheel-drive tractors, it forms a ≈400 mm top / ≈800 mm base / ≥260 mm high ridge across a 1100 mm working width at roughly 0.14 ha/h, and accepts mulch film of 1100 mm and wider.
Key features
Three-point suspension
Mounted frame with 610 mm hanging width matches standard category-II tractor linkages.
Dual-spec rotary blade set
10 pairs of 245 blades plus 2 pairs of 225 blades in opposite-spiral arrangement loosen soil evenly across the full 1100 mm width.
Integrated fertilizer hopper
0.12 m³ fertilizer box places fertilizer into the ridge during forming.
High-profile ridge
Forms a ≥260 mm high ridge with ≈400 mm top and ≈800 mm base for potato, sweet potato and vegetable beds.
Film-cover ready
Accepts mulch film ≥1100 mm wide for combined ridge-and-film operation.
Dual PTO speeds
540 / 720 r/min PTO compatibility suits a wide range of tractor models.
