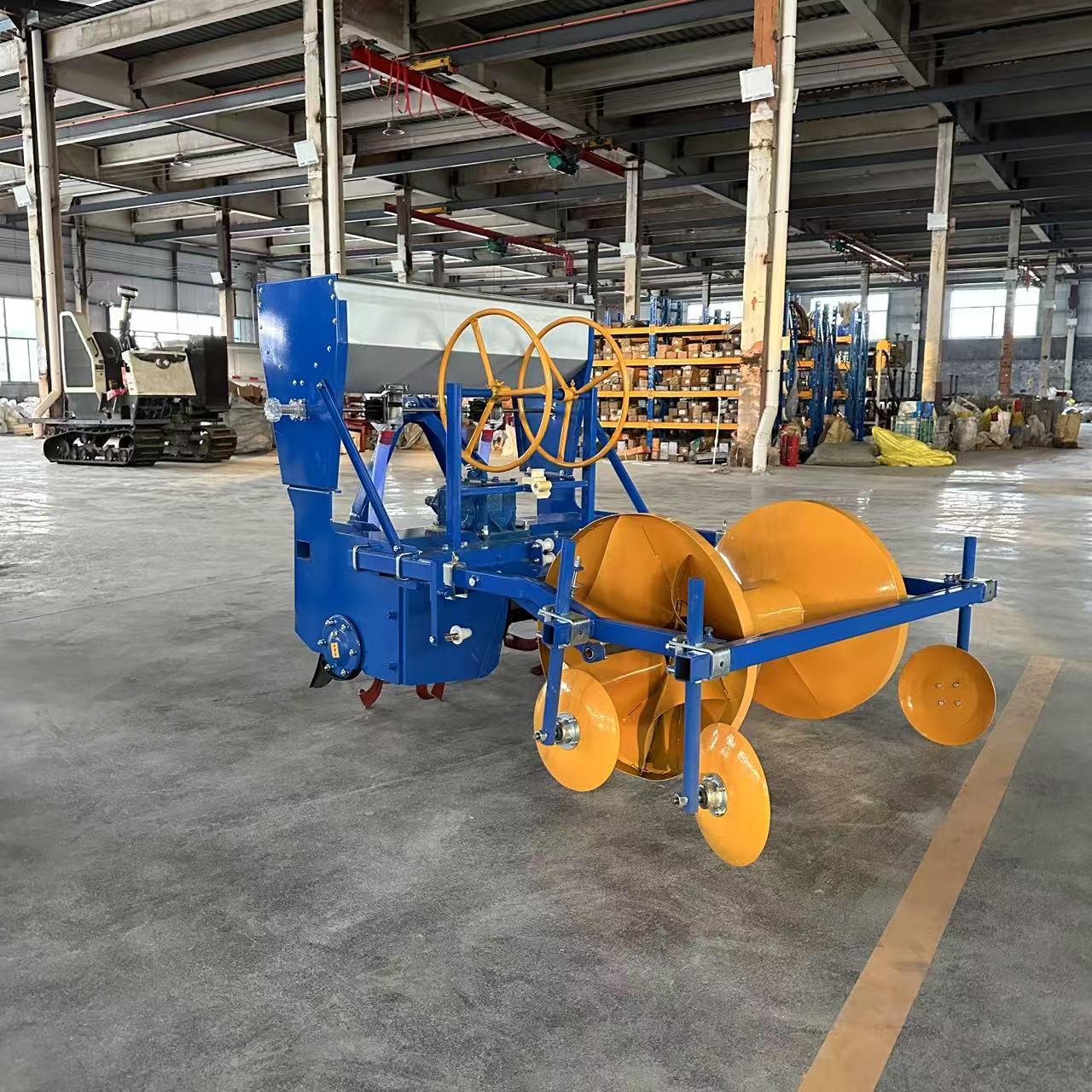

Factory view — full machine with hopper, film reel and forming discs
1GM-110 Ridger & Film Cover Machine
Single-row 1100 mm ridge former with rotary tillage and film covering
- Three-point suspension
- 1100 mm working width
- 0.14 ha/h efficiency
- ≥ 40 HP tractor
Overview
The 1GM-110 is a three-point-mounted single-row ridge former that combines rotary tillage, fertilizer placement, ridge shaping and plastic film covering in one pass. Sized for ≥40 HP tractors, it forms a 420 mm top / 800 mm base / 300 mm high ridge at 1100 mm working width and lays 1.1 – 1.2 m mulch film at roughly 0.14 ha/h.
Key features
Three-point suspension
Compact mounted frame matches 40+ HP tractors with 620 mm hanging width.

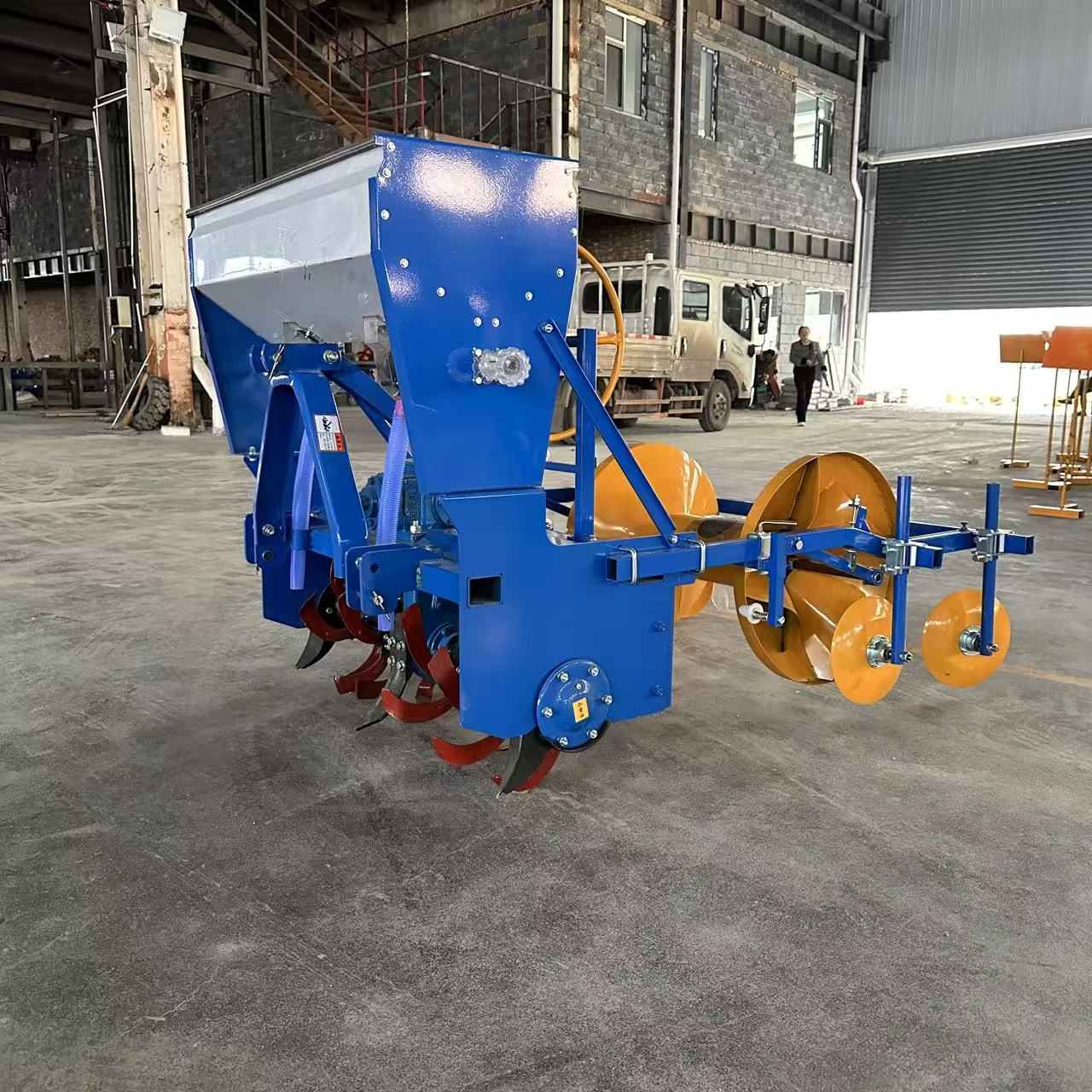

Rotary tillage section
12 pairs of IT245 blades in opposite-spiral arrangement loosen soil before ridging.
Integrated fertilizer hopper
0.1 m³ fertilizer box places fertilizer into the ridge during forming.
Ridge forming + film cover
Forms a 420 × 800 × 300 mm ridge and lays 1.1 – 1.2 m mulch film in a single pass.
Central-link depth control
Central depth-limiting mechanism keeps tillage depth and ridge height consistent.
Typical applications
1GMA-110 Ridger
Three-point-mounted 1100 mm single-row ridge former with rotary tillage
