4UDS-130 front view — full 1300 mm digging unit and elevator
4UDS-130 Potato Harvester
1300 mm three-point suspension harvester for high-output direct loading
- 1300 mm working width
- ≥ 0.19 ha/h
- ≥ 80 HP
- Instant loading
Overview
The 4UDS-130 is the widest model in the 4UDS three-point suspension family, expanding working width to 1300 mm and supporting power to ≥80 HP for high-output direct-loading harvesting. It keeps the movable 65Mn shovel, 0–250 mm depth adjustment, belt-type conveyor and 55CrSi chain bars shared with the 4UDS-90 and 4UDS-110, so service parts and operator workflow remain consistent across the range.
Key features
Widest 1300 mm intake
Maximum digging width in the 4UDS family for the highest direct-loading throughput per pass.
Higher-power matching
880 mm hanging width and ≥80 HP rating pair with larger farm tractors for sustained field speed.

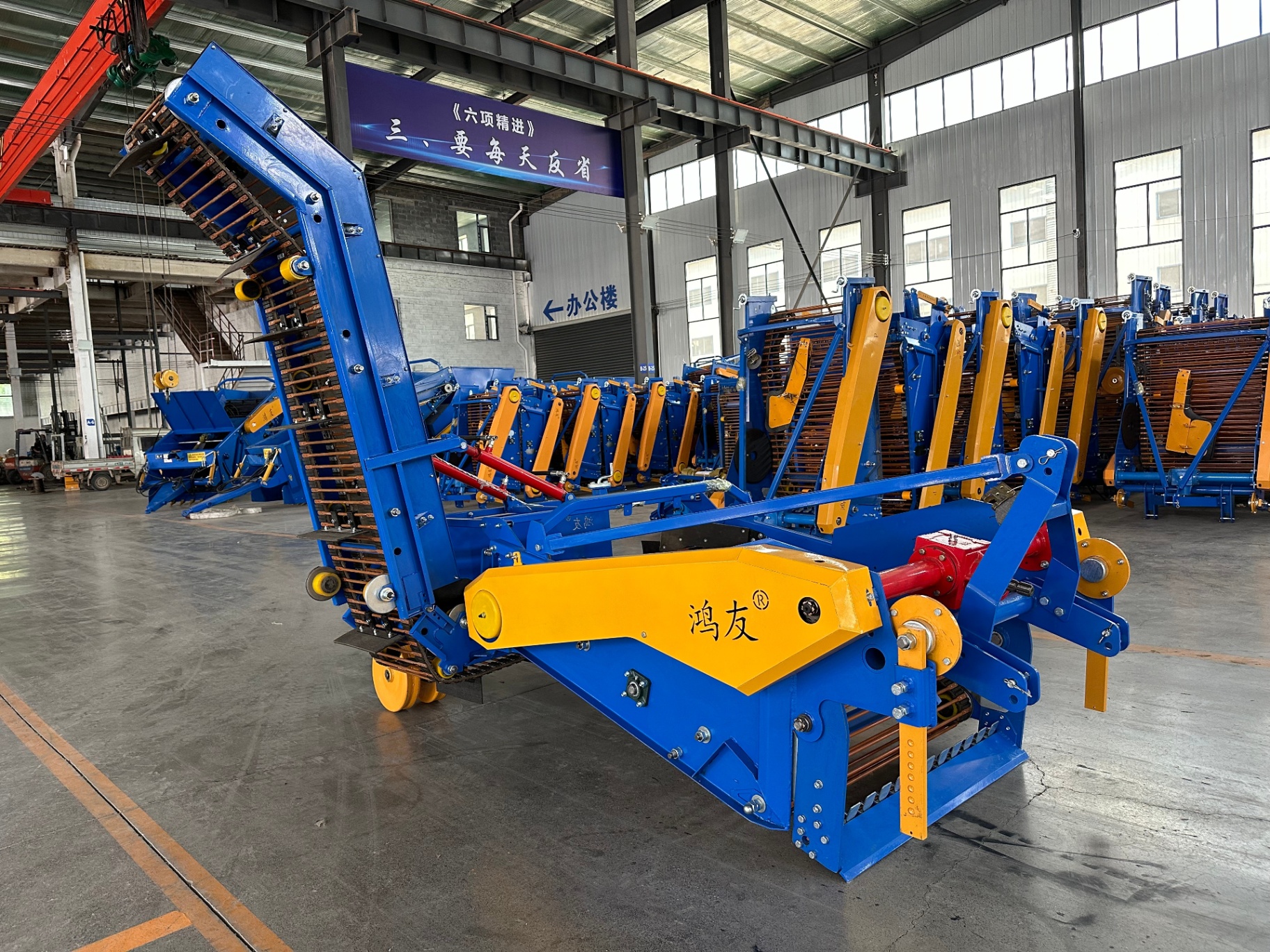

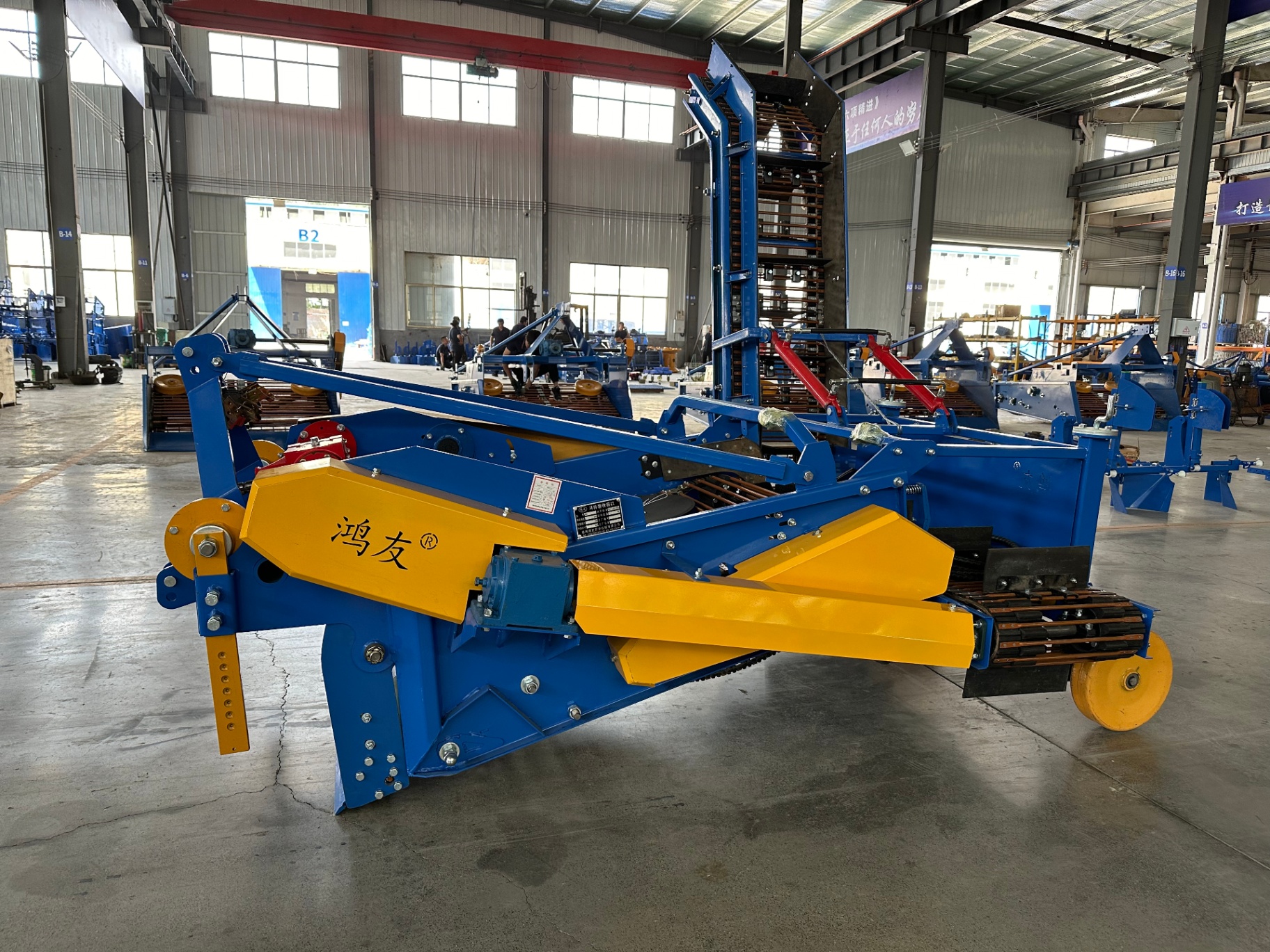

Direct loading elevator
Belt-type conveyor lifts cleaned crop directly into a trailer or bin at up to 1500 mm receiving height.
Shared service parts
Uses the same 45 mm conveyor clearance, 65Mn shovel and 55CrSi chain bars as the 4UDS-90/110 for unified maintenance.
Typical applications
