Front-quarter studio view — twin fertilizer tanks and full 4-row tool bar

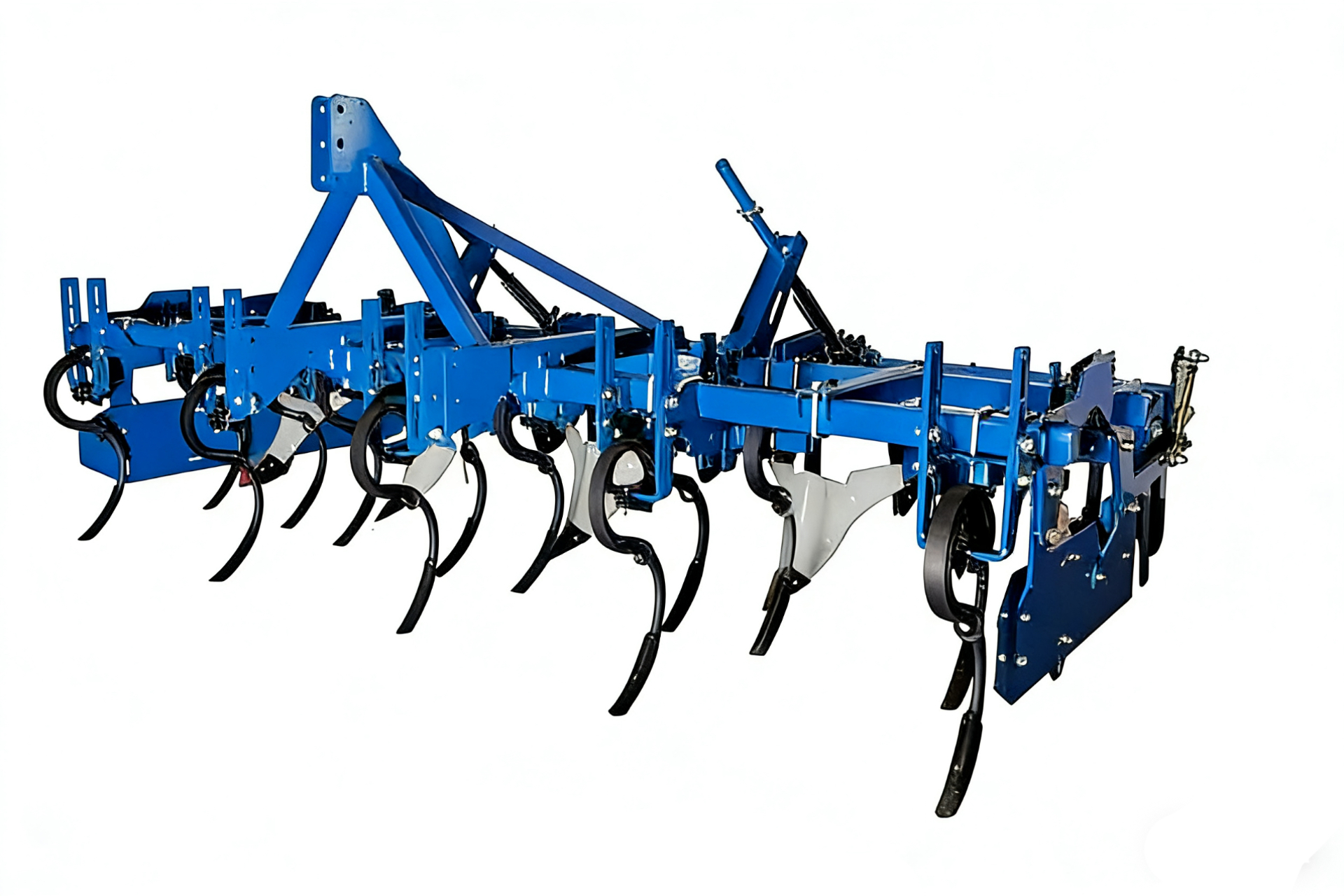

3ZMP-360 Inter-Row Cultivator & Ridger
Three-point suspension 4-row mid-tillage cultivator with 6.3 m³ fertilizer tank — 3600 mm working width, 125–180 HP
- 3600 mm working width
- 4 rows / 900 mm spacing
- 6.3 m³ fertilizer tank
- 125 – 180 HP
- ≥ 1 ha/h capacity
Overview
The 3ZMP-360 is a three-point-suspension 4-row inter-row cultivator and ridger for mid-season potato, maize and root-crop cultivation. Across a 3600 mm working width at 900 mm row spacing, it loosens the inter-row, places granular fertilizer from a 6.3 m³ split-tank and rebuilds the ridge profile (300 mm top × 800 mm base × 300 mm high, adjustable 160 – 320 mm) in one pass behind 125 – 180 HP tractors at ≥ 1 ha/h.
Key features

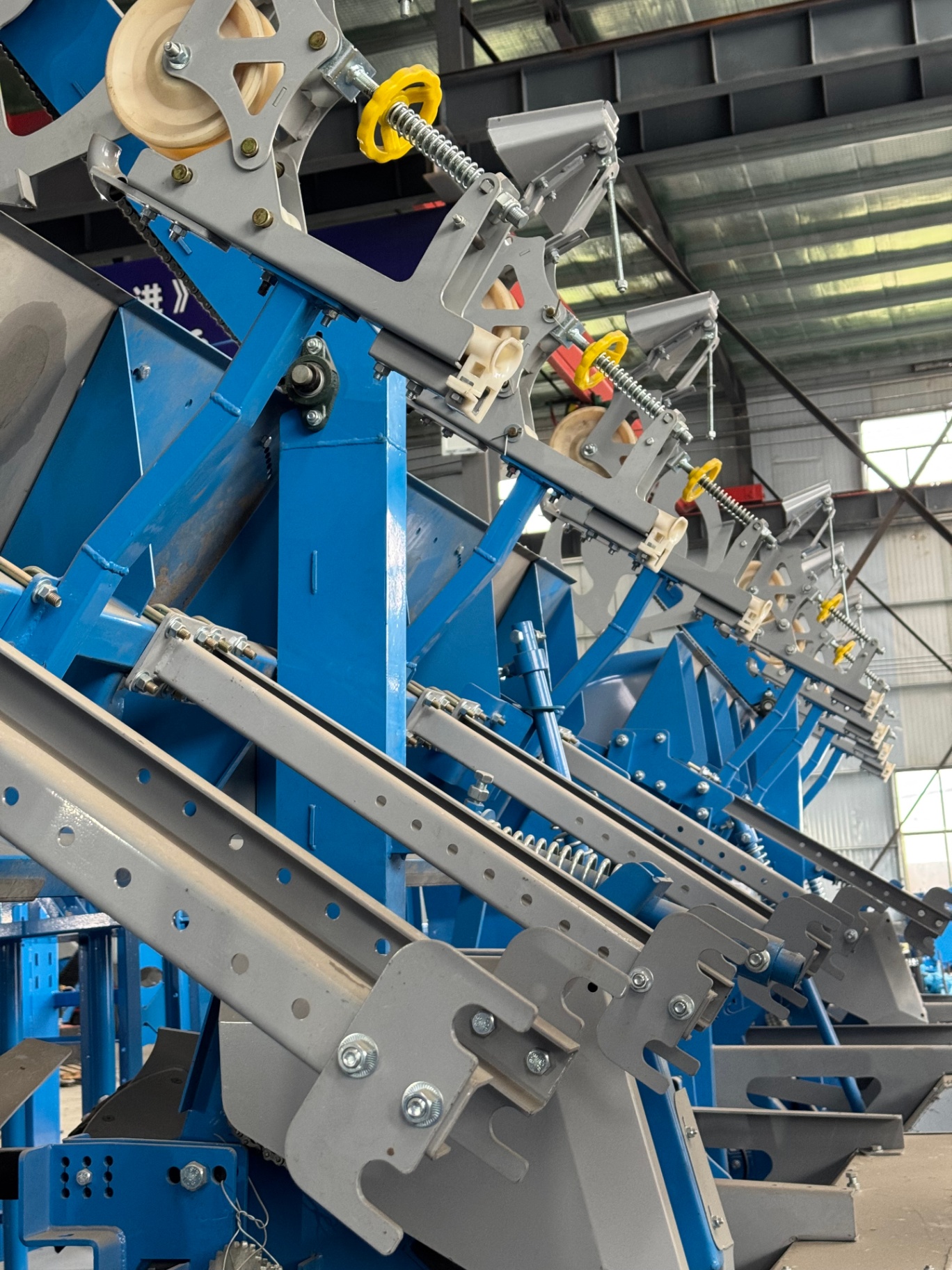

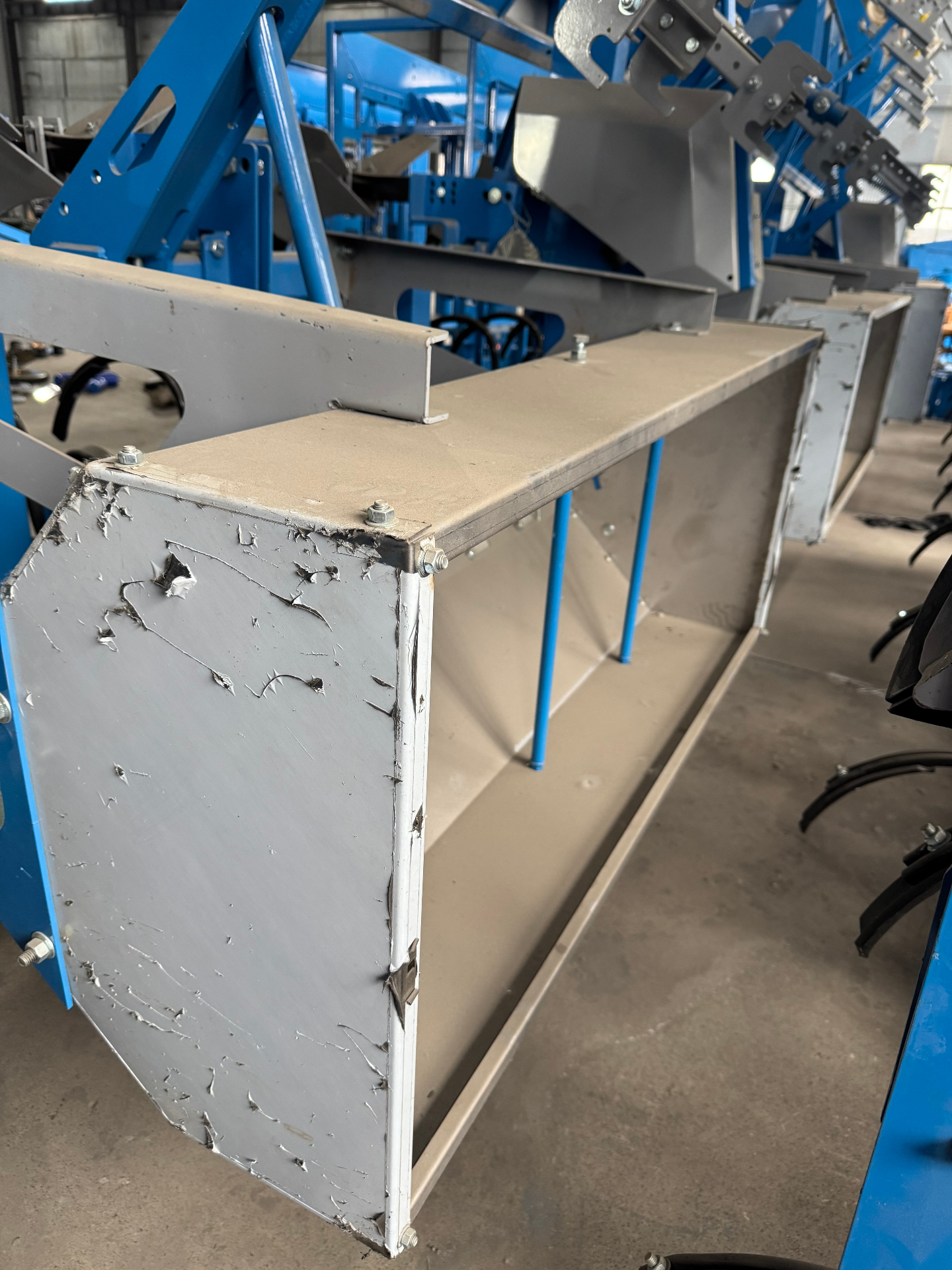

Twin 6.3 m³ fertilizer tanks
Large split-hopper granular fertilizer system feeds all 4 rows for full-field side-dressing without frequent refills.
Central pull-rod depth control
Single central depth-limiting linkage keeps tillage depth and ridge height uniform across all four rows.

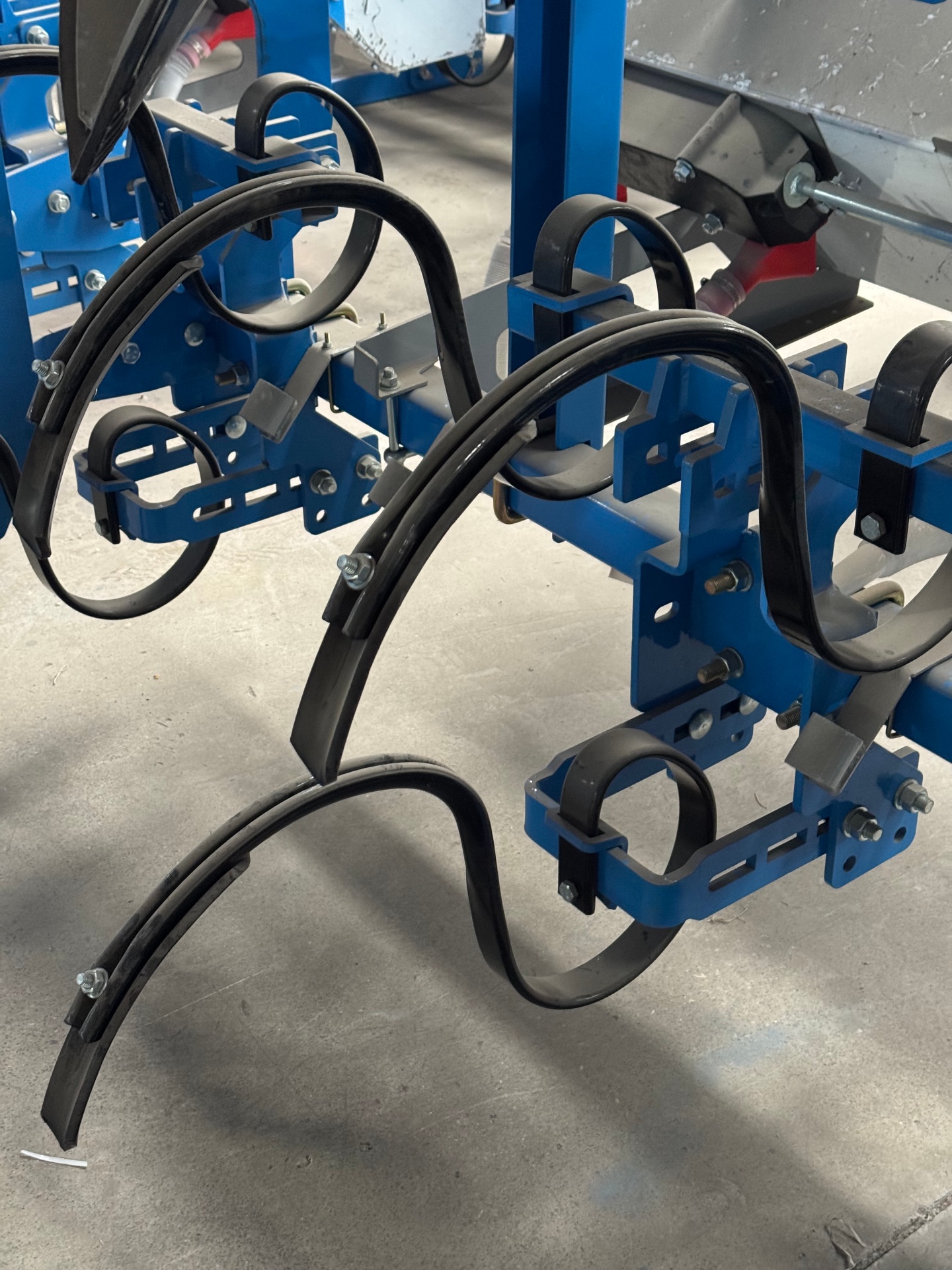

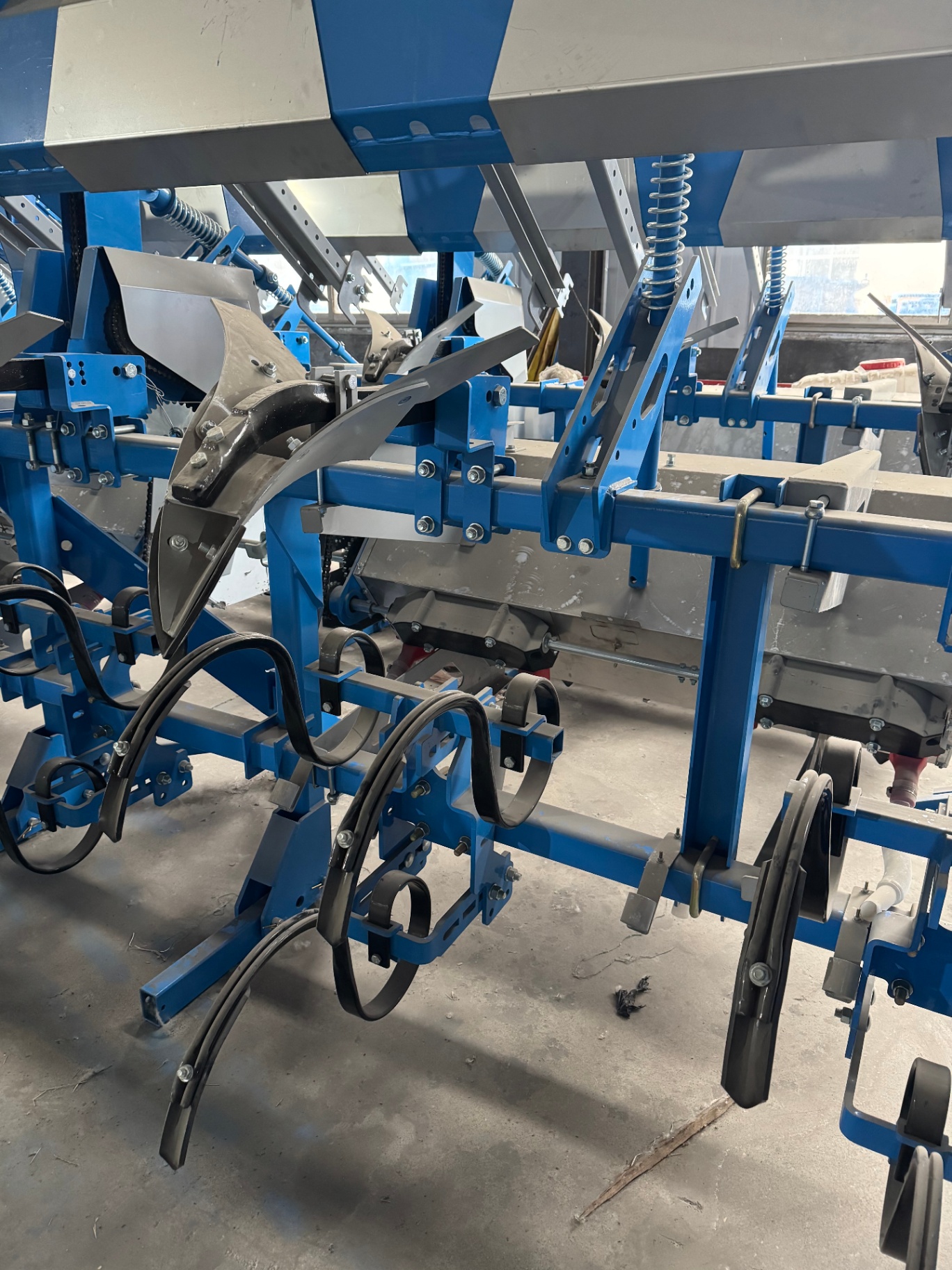

Spring-tine cultivator shanks
Independent spring shanks on each row stir the inter-row, break crust and uproot weeds while protecting against stone impact.

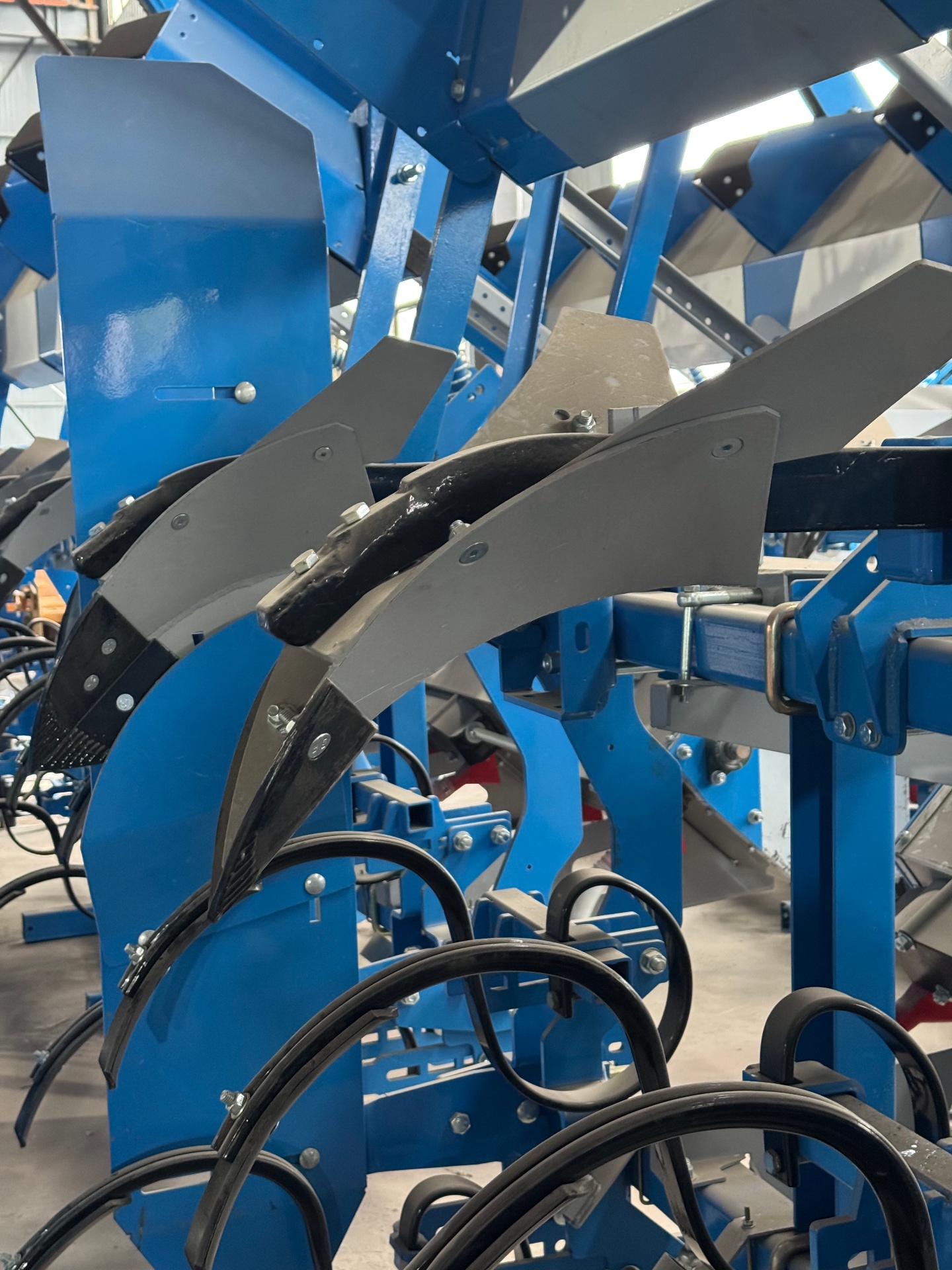

Angled ridging mouldboards
Paired curved mouldboards throw loosened soil back onto the crop row to rebuild ridges and bury weed regrowth.
Heavy three-point hitch
860 mm matching suspension width fits category-II/III linkages on 125 – 180 HP four-wheel-drive tractors.
Adjustable ridge profile
Ridge surface adjustable 160 – 320 mm to match crop stage, regional agronomy and tuber-forming requirements.
